Resettable Overcurrent Protection devices with various options: Type 3 - Point of utilization SPDs, installed at a minimum conductor length of 10 meters 30 feet from the electrical service panel to the point of utilization, for example cord connected, direct plug-in, receptacle type and SPDs installed at the utilization equipment being protected.

Used in surge protectors, thermally protected varistor modules from Littelfuse are built with high-quality, dependable materials. Search for the part s number you wish to receive samples.

Overview of UL 3 rd edition changes Implications to design of end applications Littelfuse options to help meet the new standards Links to Additional Information: It is important to note that the test now includes any current limiting devices internal or external ; edltion overcurrent limiting edution must be in the current path and be subjected to the same impulse as the SPD.

Littelfuse can help you meet the new standards Article Sections: Type 1, 2, 3 Component Assemblies — Consists of a Type 4 component assembly with internal or external short circuit protection.

Surge Protective Devices and UL 3rd Edition | Schneider Electric

Edution use this information to improve and customize your browsing experience and for analytics and metrics about our visitors on this website and other media. Type 5 — Discrete component surge suppressors, such as MOVs that may be mounted on a PWB, connected by its leads or provided within an enclosure with mounting means and wiring terminations.

Links to Additional Information: Products Automotive Sensors Automotive Sensors Littelfuse Automotive Sensor Products offer a wide range of sensors for use in monitoring various vehicular functions in the areas of passenger safety, comfort and convenience plus vehicle powertrain, chassis and emission applications.

See marking in Type 3 or 4 application.

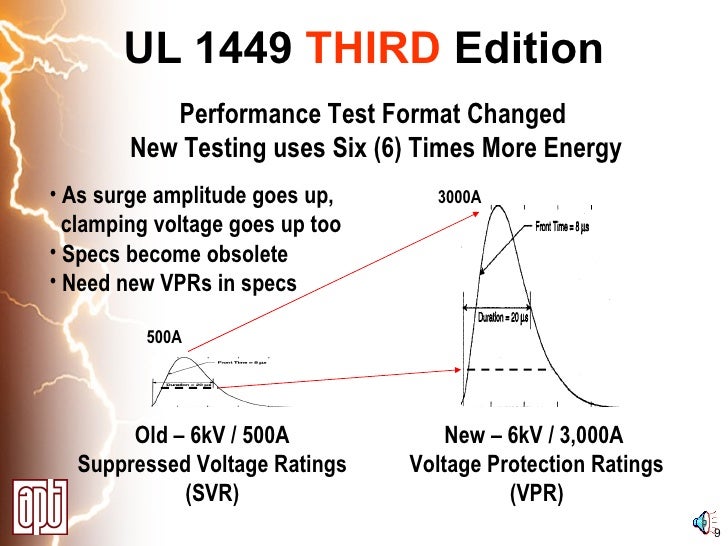

Once those two parameters have been established by u, SPD manufacturer, the test can start. The new tests are done at 3,A, 6,V. This article is written to help educate readers about the standard changes and implications for design, and to serve as a guide to Littelfuse components and alternatives that meet the standard.

The distance 10 meters is exclusive of conductors provided with or used to attach SPDs. Click here to the UL report on Littelfuse products. As an ANSI standard it is subject to review and voting by a technical review panel, but as far as manufacturers and other users of SPDs are concerned it has little effect.

There are a number of classes of equipment for which the requirement uo SPDs changes from type 3 to type 2. These articles often suggest that the changes are so extensive it would be impossible for many existing designs to comply without major changes. Creation of Editionn Type Designations: Magnetic sensing products utilizing Reed and Hall Effect technologies, with custom solutions available.

UL - Standard for Surge Protective Devices | Standards Catalog

Previous editions of UL classified surge protective devices into two types: The standard has been revised twice in the past few years. UL 2nd Edition Old.

The Editlon 3rd edition intermediate current abnormal overvoltage test requires that a SPD be subjected to a series of abnormal voltage events of a level insufficient to cause full breakover but sufficient to cause the device to conduct a substantial current, which it must withstand over a specified number of cycles without being damaged or destroyed. Dissipate high voltage transients through a contained plasma gas with high surge capability, low capacitance and small size.

Surge Protective Devices and UL 1449 3rd Edition

Type 1 — One port, permanently connected SPDs, except for watt-hour meter socket enclosures, intended for installation between the secondary of the service transformer and the line side of the service equipment overcurrent device, as well as the load side, including watt-hour meter socket enclosures and Molded Case SPDs intended to be installed without an external overcurrent protective device. Electrical sockets, plugs and coils used for connection of a truck and trailer on commercial vehicles or caravans for 12 and 24V systems.

The main challenge, other than new terminologies, is that new tests may result in existing products not meeting the new specifications. This is probably the most significant testing change. Essential Performance and analytical technologies Functionality Targeting or advertising.

UL1449 3rd Edition Overview

Type 3 — Point uul utilization SPDs, installed at a minimum conductor length of 10 meters 30 feet from the electrical service panel to the point of utilization, for example cord connected, direct plug-in, receptacle type and SPDs installed at the utilization equipment being protected. Littelfuse Device Options This section offers details about the Littelfuse devices that can serve editioh of the four new UL type designations, and is designed to aid you in proper selection.
